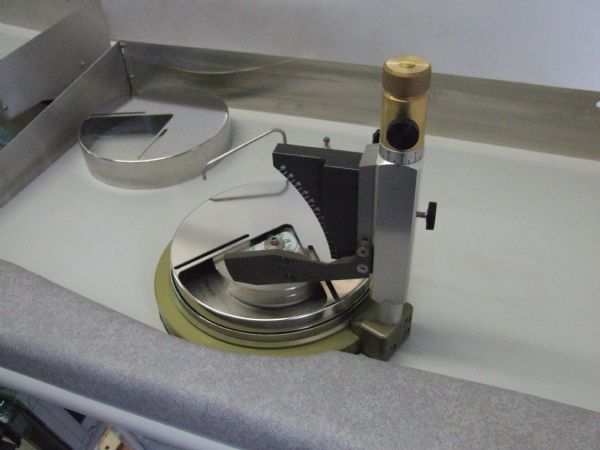

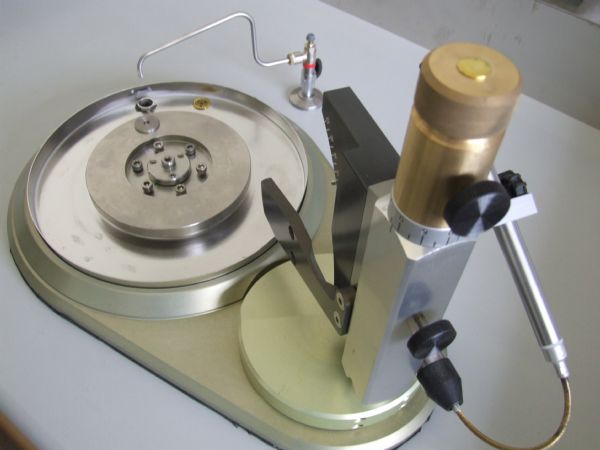

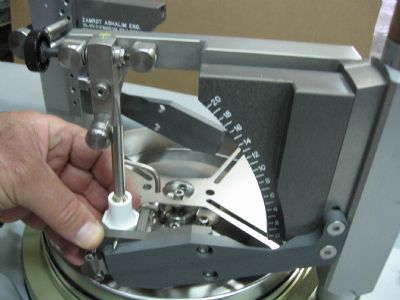

With the #2040 you can cut perfect facets with minimum adjustments during the cutting and polishing process. Our indexer Heads make it easy to cut fast and accurate facest on all colored gemstones. The Specially designed angle grooves allow swift positioning of the Indexer Head without forcing the operator to bend his hand.

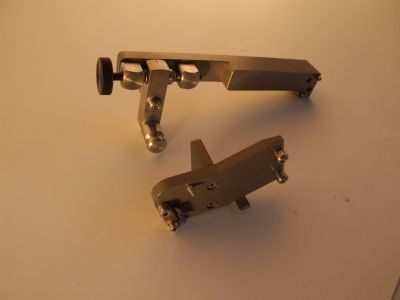

Girdle faceting assembly
With the specially designed rotational turret, this assembly of the #2040, enables to cut and polish perfect straight girdle. The rotating base of the Indexer head, allow quick and easy distance change from cutting wheel to allow the girdle cut process.
- Faceting assembly (cutting head)
- Girdle faceting assembly
- Base plate with rotational position turret
- Two speed motor: .66/.33HP-2850/1425RPM-380V.3P – (Electrical grid 220V, 3 Phase)
- Electrical switch with over surge protecting

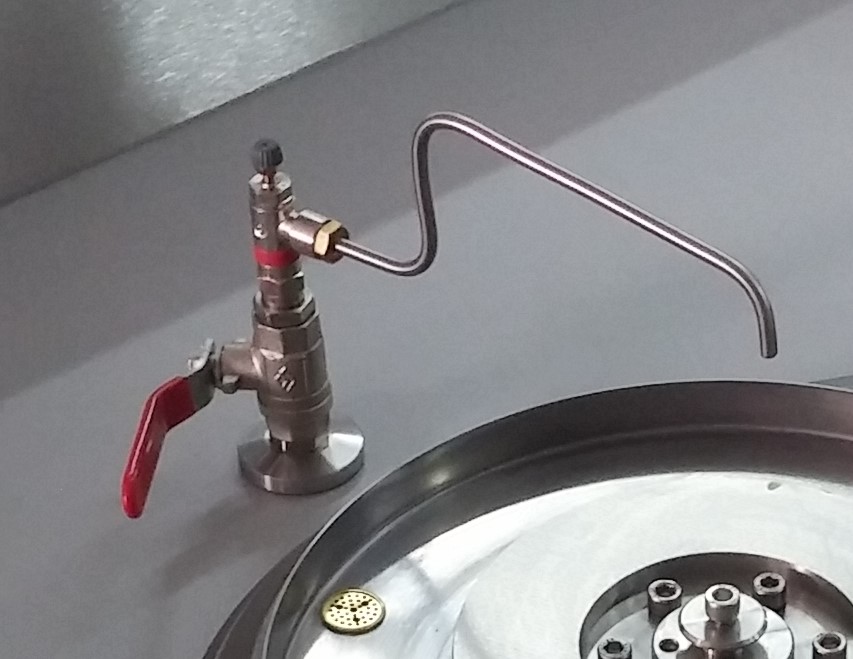

- Cooling water assembly
- Faceting splash cover
- Girdling splash cover
